p1-f2-rp1-det (run.xml)

Cable, 100um long, run for 250ms with different timesteps between 20 and 500 microseconds

Uniform unbranched cable. The task specification and reference results come from Upi Bhalla's 1992 Rallpack distribution, part of which is included below. The rest in the file README.upi.

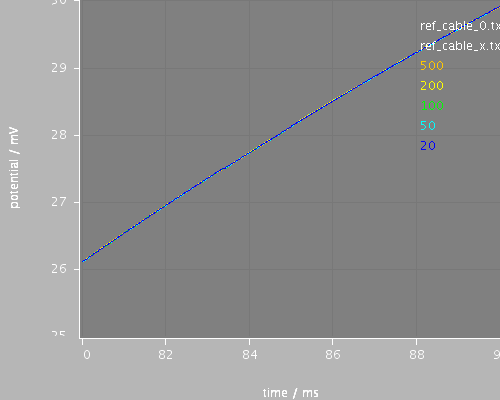

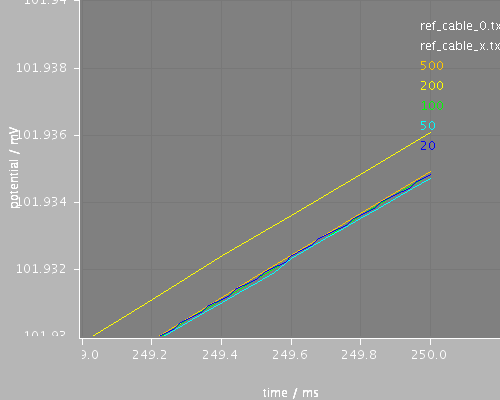

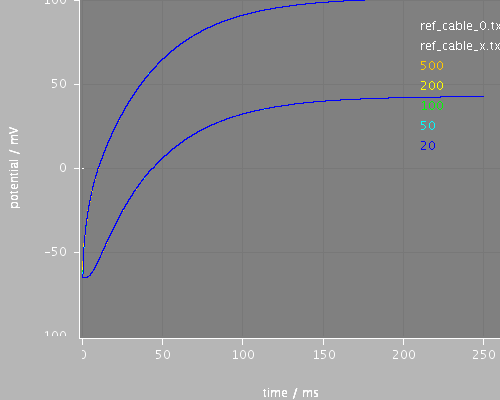

The model produces three graphs showing the reference data (correct solution) in white, and calculated curves in other colors according to the timestep used. The only difference between the graphs are the axis ranges: they all show the same data.

If the system performs correctly, the results should be almost superimposed with less than 0.01 mV difference from the reference, for any of the timesteps.

From Upi Bhalla's 1992 Rallpack package

This simulation models a simple uniform unbranched cable with
1000 identical compartments, with a length constant of 1, a diameter
of 1 micron, and a total length of 1 mm. The membrane properties are :

RA = 1.0 ohms meter             = 100 ohms cm
RM = 4.0 ohms meter^2           = 40000 ohms cm^2
CM = 0.01 Farads/meter^2        = 1.0 uf/cm^2
EM = -0.065 Volts               = -65 mV
ELEAK = EREST = EM

A current of 0.1 nA is injected in the first compartment. Membrane voltages
are recorded for the first and last compartments.
This model is run for a simulated time of 0.25 seconds.

Total CPU time 2.736 seconds; at 13:47:46 Mon 30 Jul 2007

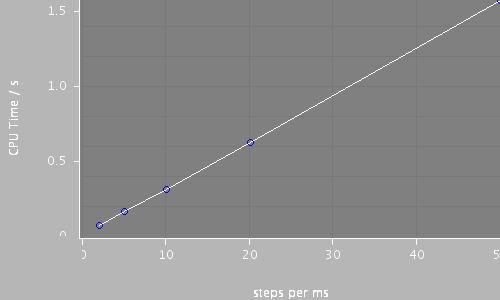

Compartments	Stochastic channels / cpmts	Continuous channels / cpmts	time/ms	timeStep	CPU Time / s
1002	0 / 0	0 / 0	250.0	20	1.57
1002	0 / 0	0 / 0	250.0	50	0.624
1002	0 / 0	0 / 0	250.0	100	0.312
1002	0 / 0	0 / 0	250.0	200	0.160
1002	0 / 0	0 / 0	250.0	500	0.0680

Predefined views

whole

end

midrange

All files

Model

run.xml

<PSICSRun   lib="." timeStep="0.1ms" runTime="250ms" startPotential="-65mV"
	method="weighted_crank_nicolson"
	morphology="cell"
	environment="environment"
	properties="membrane"
	access="recording">
	<StructureDiscretization baseElementSize="1um"/>

	<RunSet vary="timeStep" values="[20, 50, 100, 200, 500]us"
		filepattern="ts-$.txt"/>
	 <info>Cable, 100um long, run for 250ms with different timesteps between 20 and 500 microseconds</info>


	<ViewConfig>
		<LineGraph width="500" height="400">
		<XAxis min="0" max="250" label="time / ms"/>
		<YAxis min="-80" max="60" label="potential / mV"/>
		<Line file="ref_cable_0.txt" color="white" width="2" rescale="[1000, 1000.]"/>
		<Line file="ref_cable_x.txt" color="white" width="2" rescale="[1000, 1000.]"/>



		<LineSet file="ts-500-f.txt" color="orange" label="500"/>
		<LineSet file="ts-200-f.txt" color="yellow" label="200"/>
		<LineSet file="ts-100-f.txt" color="green" label="100"/>
		<LineSet file="ts-50-f.txt" color="cyan" label="50"/>
		<LineSet file="ts-20-f.txt" color="blue" label="20"/>

		<View id="whole" xmin="-10." xmax="260." ymin="-100." ymax="100."/>
		<View id="end" xmin="249" xmax="250.2" ymin="101.93" ymax="101.94"/>
		<View id="midrange" xmin="80" xmax="90" ymin="25" ymax="30"/>

		</LineGraph>
	</ViewConfig>

</PSICSRun>

cell.xml

<CellMorphology id="cell">
	<Point id="p0" x="0" y="0" z="0" r="0.5"/>
	<Point parent="p0" id="p1" x="1000" y="0" z = "0" r="0.5"/>
</CellMorphology>

membrane.xml

<CellProperties id="membrane"
      cytoplasmResistivity="100ohm_cm"
      membraneCapacitance="1uF_per_cm2">

	<ChannelPopulation channel="leak" density="25per_um2"/>

</CellProperties>

environment.xml

<CellEnvironment id="environment">
	<Ion id="K" name="Potassium" reversalPotential="-65mV"/>
</CellEnvironment>

recording.xml

<Access id="recording">

	<CurrentClamp at="p0" lineColor="red" hold="0.1nA">

	</CurrentClamp>

    <VoltageRecorder at="p1" lineColor="blue"/>

</Access>

leak.xml

<KSChannel id="leak" gSingle="0.01pS" permeantIon="K">
	<OpenState id="o1"/>
</KSChannel>
