p1-f2-rp3-stoch (run-stoch.xml)

Cable with HH sodium and potassium channels

Uniform unbranched cable with Hodgkin-Huxley sodium and potassium channels showing a prpoagating action potential. The task specification and reference results come from Upi Bhalla's 1992 Rallpack distribution, part of which is included below. The rest in the file README.upi.

The model produces three graphs showing the reference data computed by Neuron (green) and Genesis (orange) and calculated curves in other colors according to the timestep used: magenta : 1ms, cyan : 20us, blue : 1us. The only difference between the graphs are the axis ranges: they all show the same data. The reference data was computed with 1us timesteps.

If the system performs correctly, the blue line (1us timestep) and reference green and orange should be almost coincident at the beginning and differ by less than 0.2ms after 250ms.

The magenta and cyan lines show how increasing the timestep makes very little change to the spike shape, but changes the period slightly such that by the end of the calculation the longer timestep calculation has spikes a few milliseconds behind. This is a normal feature of the implicit euler method arising from the use of forward differencing for the time derivative.

Total CPU time 94.56 seconds; at 11:58:52 Thu 2 Aug 2007

CompartmentsStochastic
channels / cpmts
Continuous
channels / cpmts

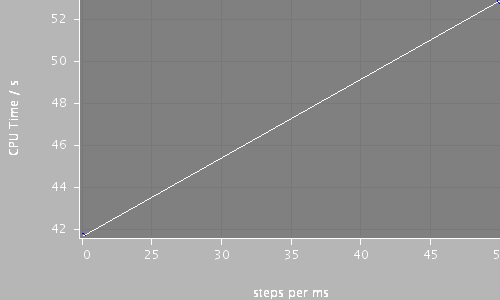

time/mstimeStepCPU Time / s
91245156 / 910 / 0250.020 52.9
91245156 / 910 / 0250.050 41.7

Predefined views

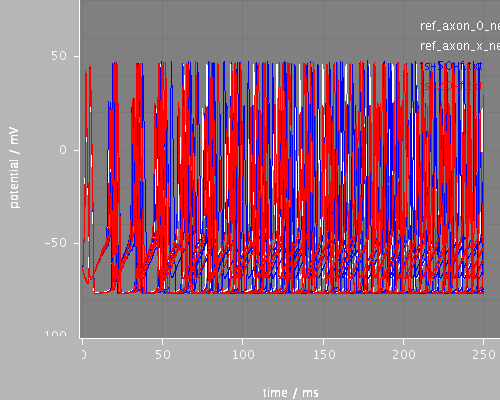

whole

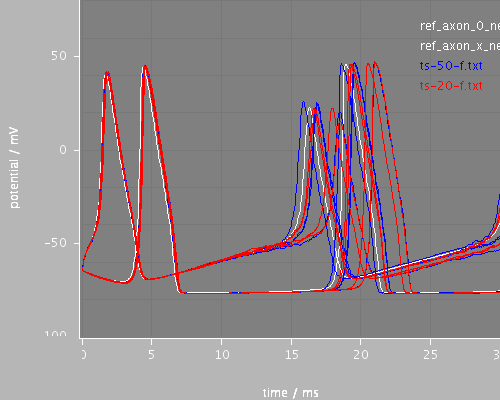

start

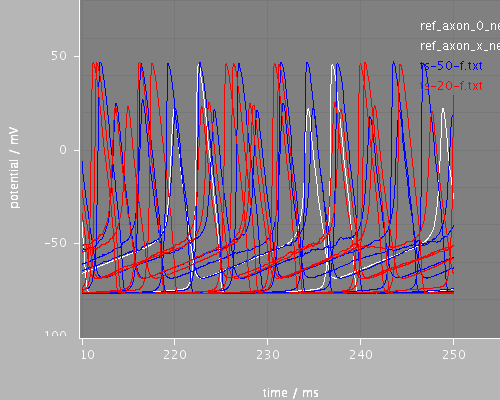

end

All files

ModelPreprocessedOutupt dataReference data etc
run-stoch.xml
cell.xml
stoch-membrane.xml
environment.xml
recording.xml
stoch-leak.xml
HH_Na.xml
HH_K.xml
summary.xml
view.xml
ts-10-fdata.txt
ts-20-fdata.txt
ts-50-fdata.txt
ts-10-f.dat
ts-20-f.dat
ts-20-f.txt
ts-50-f.dat
ts-50-f.txt
ref_axon_0_neuron.txt
ref_axon_x_neuron.txt
README
README.upi

Model

run-stoch.xml

<PSICSRun   lib="." timeStep="0.1ms" runTime="250ms" startPotential="-65mV"
	morphology="cell"
	environment="environment"
	properties="membrane"
	access="recording"
	stochThreshold="10000"
	repeats="4">
	<StructureDiscretization baseElementSize="5um"/>

	<info>Cable with HH sodium and potassium channels</info>

	<RunSet vary="timeStep" values="[20, 50]us"
		filepattern="ts-$.txt"/>


	<ViewConfig>
		<LineGraph width="500" height="400">
		<XAxis min="0" max="250" label="time / ms"/>
		<YAxis min="-80" max="60" label="potential / mV"/>

		<Line file="ref_axon_0_neuron.txt" color="white" width="1" rescale="[1000, 1000.]"/>
		<Line file="ref_axon_x_neuron.txt" color="white" width="1" rescale="[1000, 1000.]"/>



		<LineSet file="ts-50-f.txt" color="blue"/>
		<LineSet file="ts-20-f.txt" color="red"/>


		<View id="whole" xmin="-10." xmax="260." ymin="-100." ymax="80."/>
		<View id="start"   xmin="0." xmax="30." ymin="-100." ymax="80."/>
		 <View id="end"   xmin="210." xmax="255." ymin="-100." ymax="80."/>

		</LineGraph>
	</ViewConfig>

</PSICSRun>

cell.xml

<CellMorphology id="cell">
	<Point id="p0" x="0" y="0" z="0" r="0.5"/>
	<Point parent="p0" id="p1" x="1000" y="0" z = "0" r="0.5"/>
</CellMorphology>

stoch-membrane.xml

<CellProperties id="membrane"
      cytoplasmResistivity="100ohm_cm"
      membraneCapacitance="1uF_per_cm2">

 	 <ChannelPopulation id="leakpop" channel="stoch-leak" density="0.0357143per_um2"/>

	<ChannelPopulation channel="HH_Na" density="60per_um2"/>
    <ChannelPopulation channel="HH_K" density="18per_um2"/>

</CellProperties>

environment.xml

<CellEnvironment id="environment">
	<Ion id="LEAK" name="Non-specific leak" reversalPotential="-65mV"/>
	<Ion id="K" name="Potassium" reversalPotential="-77mV"/>
	<Ion id="Na" name="Sodium" reversalPotential="50mV"/>
</CellEnvironment>

recording.xml

<Access id="recording">

	<CurrentClamp at="p0" lineColor="red" hold="0.1nA">

	</CurrentClamp>

    <VoltageRecorder at="p1" lineColor="blue"/>

</Access>

stoch-leak.xml

<KSChannel id="stoch-leak" gSingle="10pS" permeantIon="K">
	<OpenState id="o1"/>
	<ClosedState id="c1"/>
	<FixedRateTransition from="o1" to="c1" forward="3.per_ms" reverse="7.per_ms"/>
</KSChannel>

HH_Na.xml

<KSChannel id="HH_Na" permeantIon="Na" gSingle="20pS">

	<KSComplex id="m" instances="3">
		<ClosedState id="c"/>
		<OpenState id="o"/>
		<ExpLinearTransition from="c" to="o" rate="1.per_ms" midpoint ="-40.mV" scale="-10mV"/>
		<ExpTransition from="o" to = "c" rate="4.per_ms" midpoint="-65.mV" scale="-18mV"/>
	</KSComplex>


	<KSComplex id="h">
		<ClosedState id="c"/>
		<OpenState id="o"/>
		<ExpTransition from="c" to="o" rate="0.07per_ms" midpoint="-65.mV" scale="-20.mV"/>
		<SigmoidTransition from="o" to="c" rate="1per_ms" midpoint="-35mV" scale="-10mV"/>
	</KSComplex>

</KSChannel>

HH_K.xml

<KSChannel id="HH_K" permeantIon="K" gSingle="20pS">

	<KSComplex id="n" instances="4">
		<ClosedState id="c"/>
		<OpenState id="o"/>
		<ExpLinearTransition from="c" to="o" rate="0.1per_ms" midpoint ="-55.mV" scale="-10mV"/>
		<ExpTransition from="o" to = "c" rate="0.125per_ms" midpoint="-65.mV" scale="-80mV"/>
	</KSComplex>


</KSChannel>
